| Nguồn gốc: | Hoa Kỳ |
| Hàng hiệu: | Bently Nevada |
| Chứng nhận: | CO.CQ |
| Số mô hình: | 21000-00-00-00-250-03-02 |

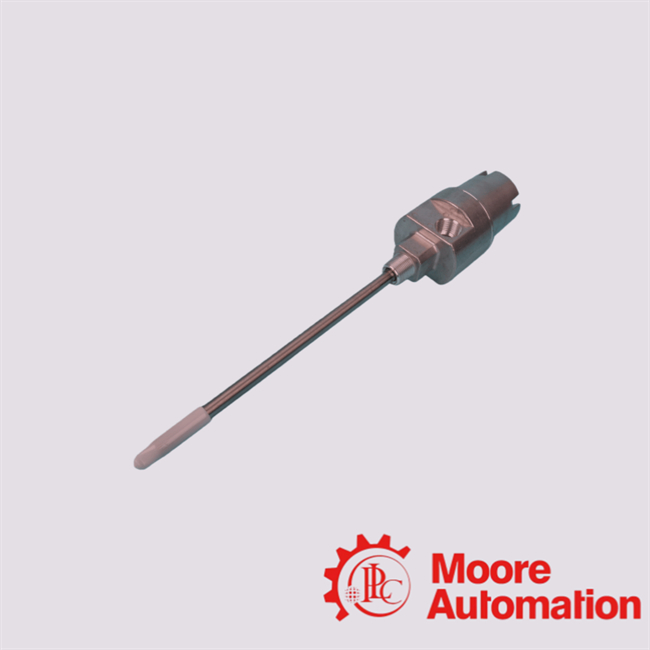

The 21000 series from Bently Nevada are heavy-duty proximity probe housing/assembly systems designed for mounting proximity (eddy-current) probes on rotating
machinery in industrial applications. They enable external access for gap adjustment or probe replacement without full machine disassembly.
21000-00-00-00-250-03-02 Details
|
FAQ |
1. Does this assembly include the proximity probe itself?In this specific variant (“00” in the probe option slot) it appears that the probe is not included (“Probe not required”). So it may be just the housing assembly configured for a certain penetration depth, fittings, thread, etc. You will need to separately procure the compatible probe (for example the 3300 XL series) if required. |
2. What is “probe penetration” and why is it important?A: Probe penetration is the depth the probe tip (or the probe sleeve) extends into the machine housing so that the sensor tip sits at the correct position relative to the target shaft or rotor. If penetration is incorrect, the probe gap and measurement accuracy may be compromised. The ordering scheme lets you specify penetration depth in increments (e.g., 0.1 in increments) for correct geometry. |
3. What mounting threads and mechanical constraints should I check?A: For the 21000 aluminum housing variant, if you use a standoff adapter (C option not “00”), mounting thread must be “02” (3/4-14 NPT). The body is aluminum with stainless steel sleeve; typical weight ~1.1kg without fittings. The housing must be mounted securely to ensure good probe coupling and minimal distortion. |
Inquiry now: miya@mvme.cn
| 330730-080-12-00 | 330709-000-050-10-02-00 | 330703-000-040-10-11-00 |
| 330730-080-02-00 | 330708-00-10-90-02-00 | 330703-000-040-10-02-00 |
| 330730-080-01-00 | 330705-02-18-90-02-00 | 330500-03-00 |
| 330730-040-01-00 | 330705-02-18-10-02-00 | 330500-02-00 |
| 330730-040-00-05 | 330703-050-120-10-02-00 | 330500-00-20 |
| 330730-040-00-00 | 330703-000-100-10-02-00 | 330500-00-00 |
| 330709-050-120-10-02-00 | 330703-000-080-10-02-00 | 330400-01-05 |
| 330709-000-120-10-02-00 | 330703-000-070-10-02-00 | 330194-17-25-15-00 |
| 330709-000-070-10-02-00 | 330703-000-060-50-12-00 | 330190-080-01-00 |
| 330709-000-060-10-02-00 | 330703-000-060-10-02-CN | 330190-045-01-CN |
