| Nguồn gốc: | Hoa Kỳ |
| Hàng hiệu: | Bently Nevada |
| Chứng nhận: | CO.CQ |
| Số mô hình: | 190501-11-00-04 |

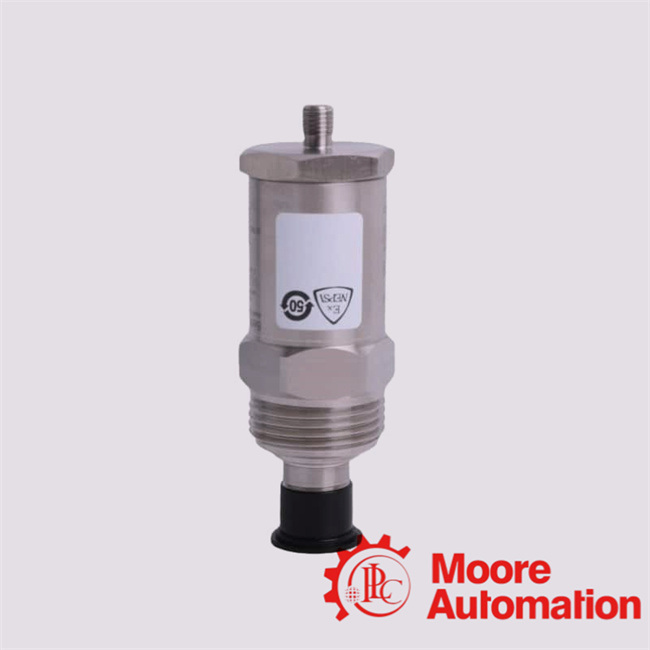

The 190501-series “Velomitor CT” by Bently Nevada is a low-frequency piezoelectric velocity transducer designed to measure casing
vibration velocity in equipment such as cooling towers and air-cooled heat-exchanger fan assemblies.
190501-11-00-04 Details
|
FAQ |
1. What rotational speeds is this sensor suitable for?It is designed for equipment operating at or above ~90 rpm (100–300 rpm typical). If equipment runs significantly slower, you should verify that the sensor’s low‐frequency response covers the application. |
2. What signal output does it provide?Standard sensitivity is approx. 100 mV/in/s (≈3.94 mV/mm/s) ±5%. Some variations mention “200 mV/in/s ±3%” for higher output versions. If you require a 4–20 mA output variant, check with supplier whether that option exists ( some listings mention “4-20 mA optional”). |
3. Can I use this sensor for high-speed rotating machines (e.g., 3600 rpm)?While the 190501 is tuned for low frequencies typical of slow-speed fans, it still covers up to ~1 kHz frequency range in some versions. However, for very high‐speed machines it may not be the optimal sensor; check the standard Velomitor or other models designed for higher rpm. |
4. Is a calibration required?Yes — especially for critical measurements. There are guides for calibrating the 190501 using a low‐frequency portable vibration calibrator. Calibration helps ensure correct sensitivity and frequency response, especially at low speeds. |
Inquiry now: miya@mvme.cn
| 330930-065-01-05 | 330910-10-22-10-01-CN | 330910-00-12-10-02-00 |
| 330930-065-00-CN | 330910-05-10-02-00 | 330910-00-11-10-02-05 |
| 330930-065-00-05 | 330910-03-09-05-02-05 | 330910-00-05-10-02-00 |
| 330930-060-01-CN | 330910-014-19-10-02-00 | 330909-00-99-10-02-00 |
| 330930-060-00-00 | 330910-00-12-10-02-00 | 330909-00-60-10-02-05 |
| 330930-045-01-00 | 330910-00-11-10-02-05 | 330907-05-30-10-02-00 |
| 330930-040-02-00 | 330910-00-05-10-02-00 | 330905-14-19-10-02-05 |
| 330930-040-00-00 P3403893-0006 | 330909-00-99-10-02-00 | 330905-08-13-10-02-05 |
| 330930-040-00-00 | 330909-00-60-10-02-05 | 330905-05-10-10-12-CN |
| 330910-14-19-10-02-00 | 330907-05-30-10-02-00 | 330905-00-13-10-12-CN |
