| Nguồn gốc: | Hoa Kỳ |
| Hàng hiệu: | Bently Nevada |
| Chứng nhận: | CO.CQ |
| Số mô hình: | 190501-01-99-01 |

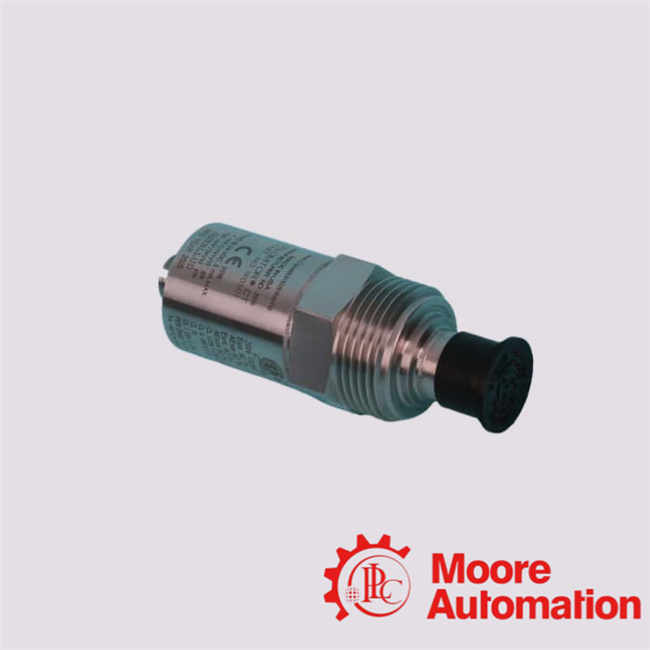

The part number 190501-01-99-01 refers to a Bently Nevada Velomitor CT Velocity Transducer, a specialized low-frequency sensor designed for monitoring casing
vibrations in industrial machinery. This sensor is particularly suited for applications such as cooling towers and
air-cooled heat exchanger fan assemblies that operate at or above 90 RPM.
190501-01-99-01 Details
|
FAQ |
|
Q1: What is the primary application of the Velomitor CT Velocity Transducer? A1: The Velomitor CT Velocity Transducer is primarily used for monitoring casing vibrations in machinery applications such as cooling towers and air-cooled heat exchanger fan assemblies that operate at or above 90 RPM. |
|
Q2: What is the frequency response range of the Velomitor CT Velocity Transducer? A2: The sensor offers a frequency response of 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB, and 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB. |
|
Q3: What is the maximum cable length supported by the Velomitor CT Velocity Transducer? A3: The sensor supports a maximum cable length of 305 meters (1,000 feet). |
|
Q4: What is the operating temperature range of the Velomitor CT Velocity Transducer? A4: The sensor operates within a temperature range of -40°C to +85°C (-40°F to +185°F).
|
Inquiry now: miya@mvme.cn
