| Nguồn gốc: | Hoa Kỳ |
| Hàng hiệu: | Bently Nevada |
| Chứng nhận: | CO.CQ |
| Số mô hình: | 330101-00-12-50-01-05 |

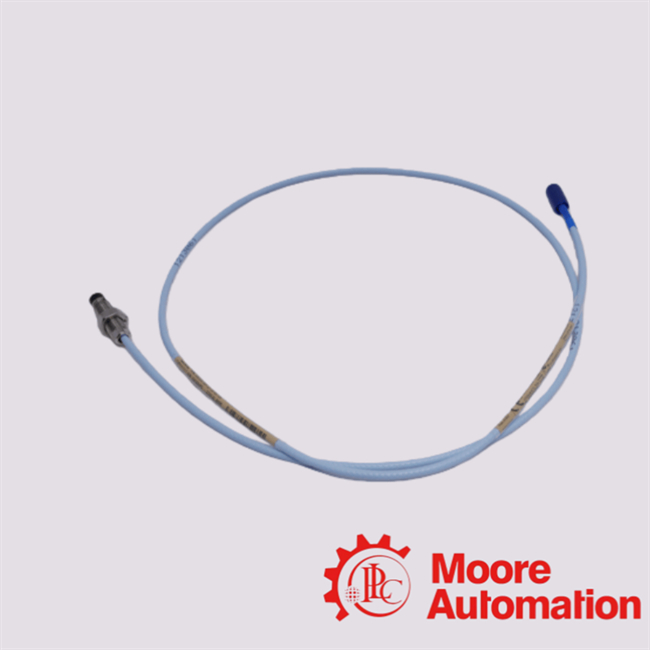

TheBently Nevada 330101‑00‑12‑50‑01‑05 Proximity Transducer (probe)is part of the 3300 XL 8 mm Proximity Transducer System.The system provides an output voltage that is directly proportional to the distance (gap)
between the probe tip and a conductive surface. It can measure both static (position) and dynamic (vibration) valuesThe 8 mm probe (larger than the 5 mm alternative) offers improved robustness and better
mechanical durability.The family supports interchangeable components: probe + extension cable + sensor can be mixed (within the 8 mm line) without individual bench matching, provided you
stay within the defined system.he probe 330101‑00‑12‑50‑01‑05 can be described as:A 3300 XL 8 mm diameter proximity probe with 3/8‑24 UNF thread mounting, standard (no armor)
body, case length ~1.2 in, total cable length ~5.0 m, with ClickLoc connector + connector protector and
certified for multiple agency approvals.
|
FAQ |
|
Q1: What exactly does this probe measure? output voltage of the overall transducer system is proportional to this gap. The system can track static displacement (position) and dynamic displacement (vibration). |
|
Q2: What gap should I set and how is calibration addressed? target material is used, the factory can supply calibration to that alternative, but performance (accuracy/interchangeability) may vary. |
|
Q3: If I have to replace the cable length, what should I consider? extension cable, you must ensure the total system length (probe + extension cable + Proximitor) remains within the validated length for your system, and check that electrical characteristics (resistance, capacitance) stay within specification. The datasheet warns that system performance may be affected by field wiring length. |
