| Nguồn gốc: | Hoa Kỳ |
| Hàng hiệu: | Bently Nevada |
| Chứng nhận: | CO.CQ |
| Số mô hình: | 330103-00-10-50-02-00 |

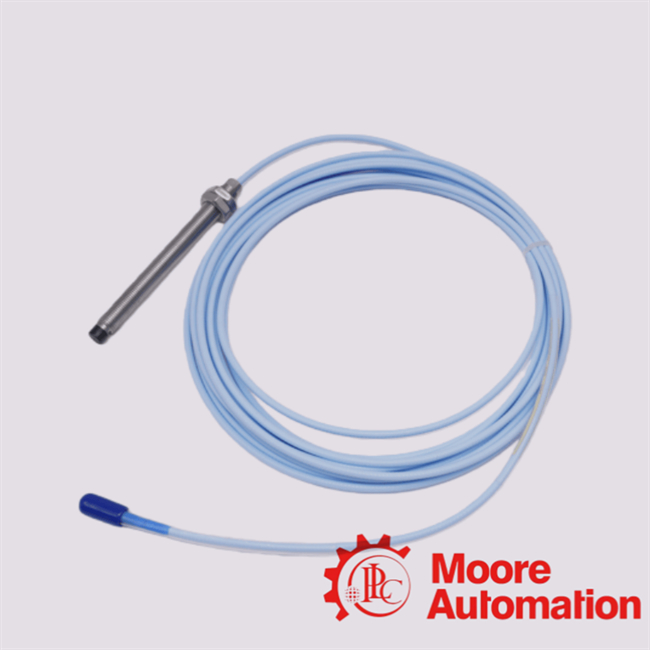

The 330103-00-10-50-02-00 is a version of Bently Nevada’s 8 mm eddy-current proximity probe system (3300 XL series). The “330103” model identifier specifically means:The “8 mm probe” type with armour (i.e., a version
that includes armored probe/cable assembly).The “-00” after that indicates an unthreaded length option of 0 mm (i.e., standard thread length).“-10” is the Overall Case Length Option (in the code this typically means
something like 1.0 in or some specific case size—though code lists vary).“-50” is the Total Length Option—for example, in this part code “50” often means 5.0 m (16.4 ft) total length of probe + cable. (In nearby
part codes the “50” suffix is used for 5.0 m length)“-02” is the Connector & Cable‐Type Option (“02 = miniature coaxial ClickLoc™ connector, standard cable”)“-00” at the end is
the Agency Approval Option (“00 = not required”) per the datasheet.
|
FAQ |
|
Q1: What does the “330103” model number mean relative to other 3300 XL probes? |
|
Q2: What is the significance of “-50” in the part number? So your part likely has a total length of ~5 m. |
|
Q3: Can I use this probe with a shorter or longer cable than specified? when you use a non-standard length, make sure you maintain the specified cable characteristics (75 Ω triaxial, correct impedance), and verify signal integrity. If you lengthen too much, you may risk degraded performance (loss of bandwidth, increased noise). The datasheet states compatibility but also warns that system performance and accuracy are defined for specified lengths and components. |
